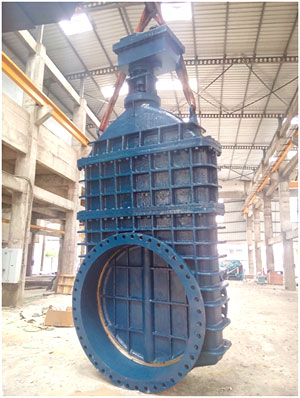

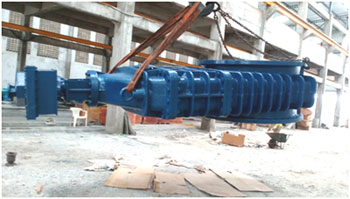

1800mm metal-seated sluice valve – largest to have been built in India till date:
  August 10, 2015.



We have successfully designed, manufactured, tested and delivered a 1800mm PN 1.6 MPa (16 Bar) metal seated sluice valve for a pump-house
of a GWIL project. This effectively enhances our range from sizes 50mm to 1800mm, and further cements our position as one of the top valve manufacturers in the country.




Some Highlights:

  • Overall Height: 5.8 meters (19ft.)
  • Weight: 16 tons
  • Electrically actuated through multi-stage spur gearbox
  • Shell Material: S.G. Iron IS 1865 Gr. 500/7
  • Stem: High strength martensitic stainless steel: AISI 431
  • Seating Surfaces: St. Steel
  • Precision channel & shoe wedge guides
  • Low torque Stuffing Box with Repacking Arrangement
